how to use

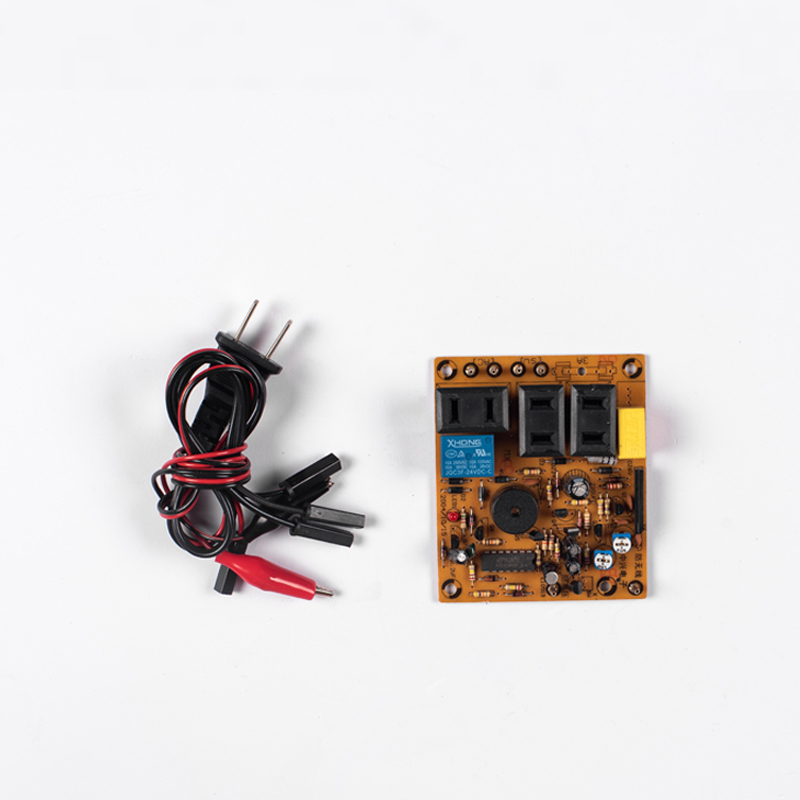

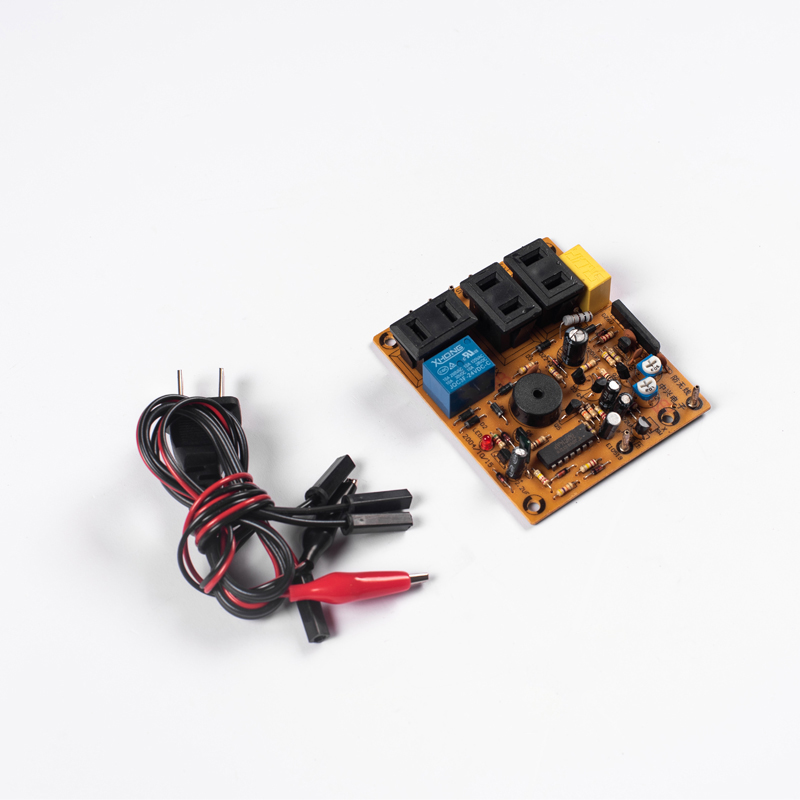

1.Black line, please winding device in the coin line,IC board Copper Cylinder or other place where have metals in order to anti-high-voltage.

2.Red line,please folder with wire harness or around the pcb sheet,in or der to anti-interference.

3.The A/C line of the machine,please connector to the delay socket NO.J1 or NO.J2..

4.J4, J7, please connector to 220V external power supply.

5.VR2 adjust to low-frequency sensitivity, VR3 adjust to extra-high sensitivity. adjustment clockwise, Clockwise to adjust the strong and and vice versa weak.

6.When the manual / automatic switch is set manually, it will Cut off the power and warning when bear the interference, need to manually turn off the power  then return to work. When set at automatically ,it will warning for about fifteen second then return to work automatically.

Packaging & Delivery

Packaging Details

One piece in one bag, 100 pieces in one box

Lead Time :7dyas after getting your payment
